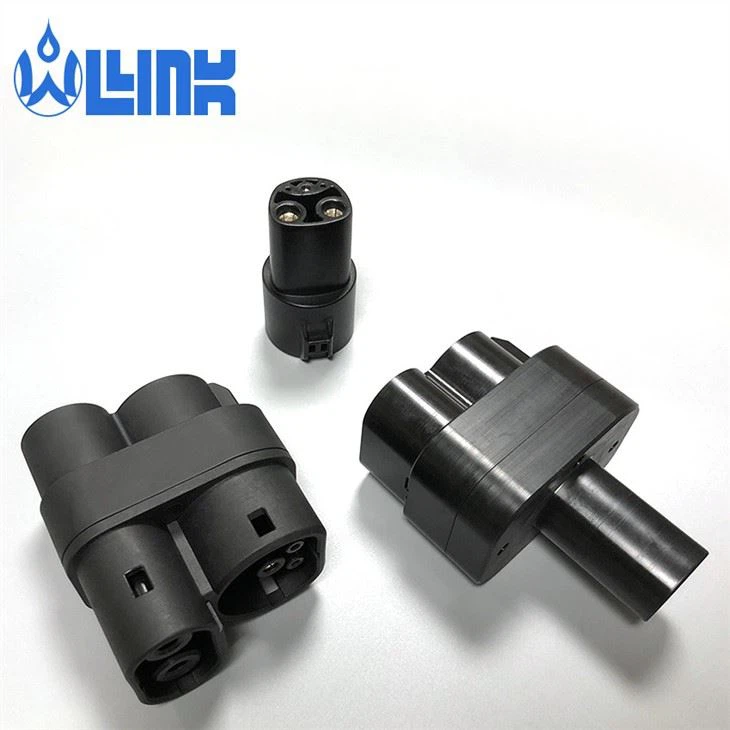

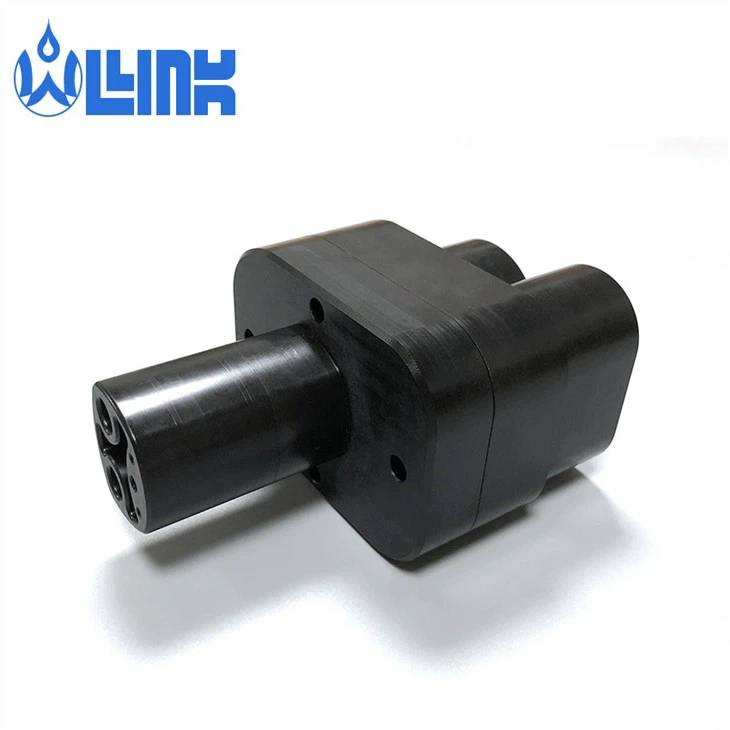

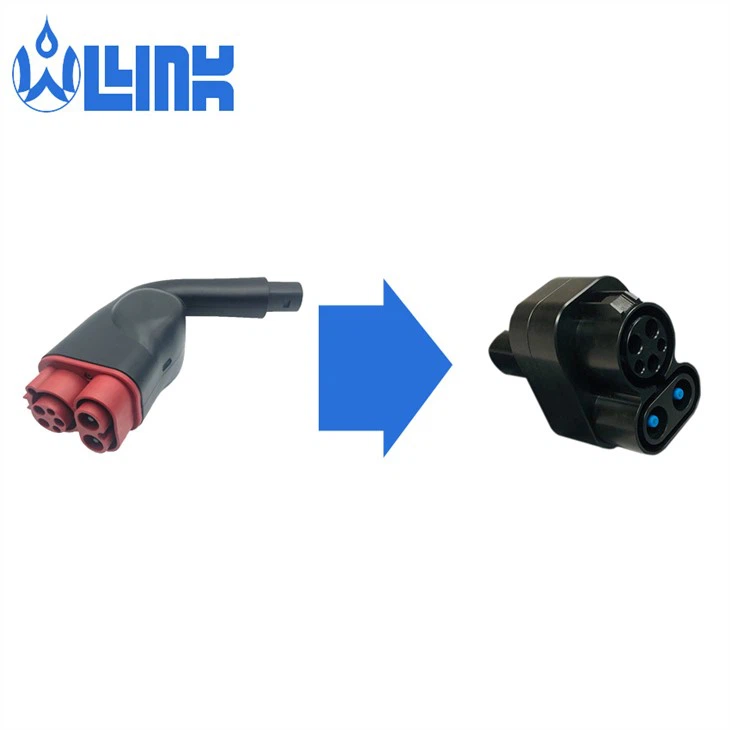

UMC Charger Adapter

UMC Charger Adapter The AC/DC charger can be located on the outside of the vehicle or embedded in the interior of the vehicle. The charger is connected to the battery management system. This system ensures that the battery cells are charged correctly until the high voltage (HV) requirements are met. The HV battery is essential for driving the traction motor during operation. It also supplies the other electronic modules of the vehicle with 12 V via a converter. Depending on the charging mode (slow, medium or fast) and technology (wired or wireless)

Send Inquiry

Chat Now

Category: EV Charger Cable

Description

UMC Charger Adapter The AC/DC charger can be located on the outside of the vehicle or embedded in the interior of the vehicle. The charger is connected to the battery management system. This system ensures that the battery cells are charged correctly until the high voltage (HV) requirements are met. The HV battery is essential for driving the traction motor during operation. It also supplies the other electronic modules of the vehicle with 12 V via a converter. Depending on the charging mode (slow, medium or fast) and technology (wired or wireless)

Basic Info.
Model NO:Combo CCS Adapter
Max Charging Power:90kw
Operating Temperature:1.-30ºC~+50ºC
Insulation Resistance:>2000mΩ( DC1000V )
Terminal Temperature Rise:<50K
Withstand Voltage:3200V
Contact Resistance:0.5mΩmax
Transport Package:Neutral Package
Specification:150A
Trademark:OLINK
Origin:China
Production Capacity:50000PCS/Year

UMC Charger Adapter Charging wire core enhancement: using the sixth type of fine wire conductor. The zero wire and fire wire conductor are enhanced, higher than the national standard, reducing the charging wire loss and heat generation.

Silver plated and thickened type of energiser terminals: physically plugged and unplugged more than 10000 times.

Charging at minus 15 degrees: the flexible low temperature cable is used in the minus 15 degrees environment and the cable still does not lose its flexible characteristics, which makes it easy to collect the cable and prolongs the life of the wire.
