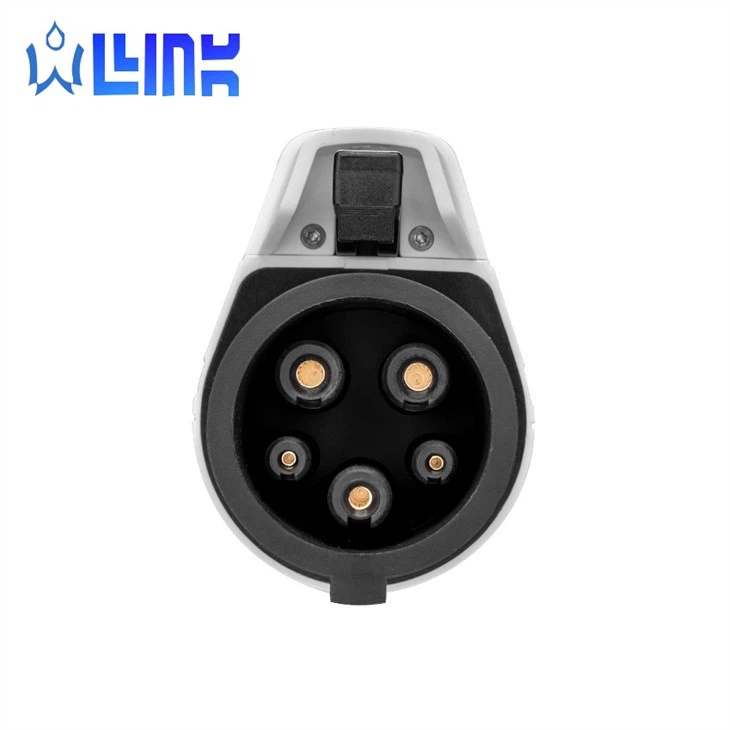

Type 1 To Type 2 Adapter

Product name ：type 1 to type 2 adapter

The main feature of a Type 1 to Type 2 adapter is that it allows EV owners to charge their vehicles at Type 2 charging stations, which are more common in Europe. Cable material is TPU, the best material in the market at present, conforms to the the latest European Union standards, lighter and thinner, long time durability, low temperature resistance. This makes it possible for EV owners to travel across different countries without worrying about the compatibility of charging stations. In terms of export trade, Type 1 to Type 2 adapters can be manufactured in countries where Type 1 connectors are commonly used, such as the United States and Japan, and exported to countries where Type 2 connectors are more prevalent, such as those in Europe. This creates a market for manufacturers to produce and sell these adapters to meet the demand of EV owners who need to charge their vehicles while traveling abroad. It is important to note that using a Type 1 to Type 2 adapter does not affect the charging speed or efficiency of the charging process.

Product Description

Product Features:

Product Definition	Electric Parameter
Stadnard	IEC 62196-2:2016/ SAEJ1772	Rated Current	32A
Charging Mode	Mode 3	Rated Voltage	250V
Connector Manner	B	Power Pin Numbert	3 ( L, N, PE )
Current Type	AC	Signal Pin Numbert	2 ( PP, CP )
Housing Color	White	Signal Pin Current	2A
Cable Color	Black	Insulation Resistance	≥5MΩ

Ambient Condition	Mechanical Performance
AmbientTemperature （ working ）	-30℃–50℃	Insertion & Pullout Times	＞10000 times
AmbientTemperature （ storage ）	-40℃–80℃	Insertion & Pullout Force	45N～100N
Ingress Protection	IP54	Withstanding Impact	Affordable 1 meter height fell or 2 ton car run over presure

Major Material
Plug Material	Reinforced Thermoplastic, UL94V-0
Housing Material	Reinforced Thermoplastic, UL94V-0
Cap Material	PUR
Pin Material	Copper Alloy, Silver Plated
Cable Configuration
Single Phase 32 A	36 mm²+10.5mm²
Cable Style	flat cable
Cable Material	TPU

Standard	62196-2 IEC 2010 / SAE J1772
Current	16A 32A
Warranty	24 month
Certification	Ul-TUV-CE-ROHS
IP Grade	IP 44
Operating Voltage	250V
Operating Temperature	-30℃~50℃

Female / car side Male / pile side

A1 B2

Features

Converts Type 1 charging station to Type 2: The adapter allows electric vehicles (EVs) with Type 2 charging ports to charge from Type 1 charging stations.

Compact and Portable: Type 1 to Type 2 adapters are typically small and lightweight, making them easy to carry around in the car.

Easy to use: These adapters are designed to be easy to use with a simple plug-and-play setup.

Durable: High-quality Type 1 to Type 2 adapters are built to withstand regular use and are often made from durable materials.

Affordable: Type 1 to Type 2 adapters are generally affordable and represent a cost-effective way for EV owners to access charging facilities that may not have Type 2 charging ports.

Safety features: Most Type 1 to Type 2 adapters come with built-in safety features such as overvoltage and overcurrent protection to protect both the adapter and the EV during charging.

Compatibility: These adapters are compatible with a wide range of EVs with Type 2 charging ports, making them a versatile accessory for EV owners.

However, it is recommended that EV owners consult with their vehicle manufacturer or charging station provider to ensure that their vehicle is compatible with the Type 2 connector before using an adapter.
