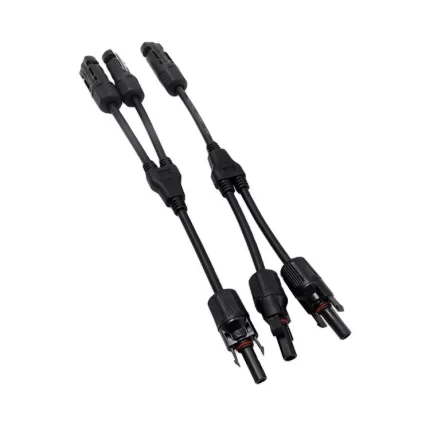

Solar Panel Wiring Harness

Product Overview:

The solar panel Wiring harness is wired with an inner drum-shaped reed, and the male and female heads are used together with wiring boxes and cables. The wiring harness is made of PPO material, and the outer shell has strong anti-aging and uv resistance. In line with the requirements of outdoor harsh environmental conditions; The cable is connected by inserting and fixed self-locking structure. Fixed male and female head with stable self-locking mechanism, open and close freely and perfectly engage with MC4. This product has passed TUV certification.

Solar panel Wiring harness has a strong anti-aging and uv resistant function, which is in line with the use in harsh outdoor environment conditions; The connection of the cable adopts riveting and tight collar; It is convenient to plug and remove the male and female head, without using other tools, and it is not easy to damage the buckle.

Technical Specification:

● Maximum working voltage: DC1000V

● Rated Current: 30A

● Flame class: UL94-V0

● Contact resistance: ≤5mmΩ

● Shell Protection degree: IP65

● Specification of Connecting Line: 4mm

● Ambient temperature range: -40～+85℃

● Insertion force: ≤50N

● Withdrawal force: ≥50N

Features

1. Simple and safe installation

2. Good mechanical impact resistance

3. Low contact resistance

4. Carrying capacity of high current and high voltage

5. Excellent plastic raw materials, with excellent performance of high and low temperature, fire prevention, uv protection, suitable for long-term outdoor use

6. Innovative sealing, waterproof and dustproof design: IP65
