Mode 2 Charging Gun
A professional industrial design company with a rich variety of charging gun designs has made clear the national standards for the design of charging pile and charging gun by studying the national standards such as charging pile, charging gun conductive charging system, connecting device for conductive charging, AC charging interface, DC charging interface, communication protocol, etc., and has studied and designed DC charging gun, AC charging gun, slow charging gun, fast charging gun, American standard charging gun, etc. in combination with ergonomics European standard charging gun and national standard charging gun are different types of charging guns.

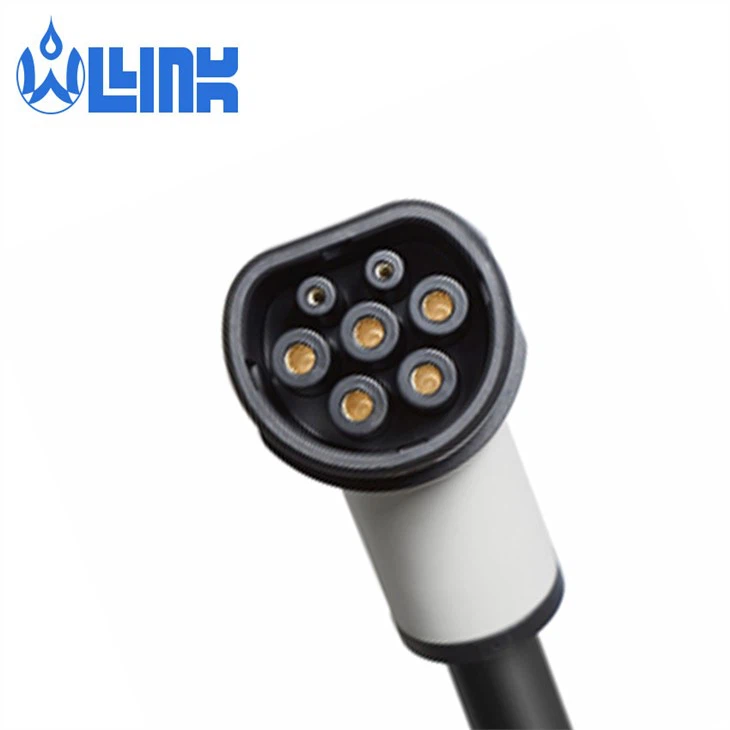

Mode 2 AC charging gun is applicable to pure electric and hybrid electric vehicles. It is equipped with vehicle charging plug and cable control box to quickly charge electric vehicles (EVS) with AC through gb/t vehicle interface.
. Technical parameters:
1 electrical parameters:
-Rated voltage: 250V AC
-Rated current: 10A
-Operating frequency: 50Hz
-PWM signal at CP end: amplitude: ± 12VDC, frequency = 1kHz, PWM duty cycle set to 13.3% ± 0.5%
2 mechanical parameters:
-Mechanical life: ≥ 10000 times
-Insertion and separation force: 50 ~ 80N
3 other parameters:
-Protection grade: gun head and control box IP67
-Flame retardant grade: ul94-v0
-Number of connector cores: 7
-The product is beautiful, comfortable to hold, ergonomic in shape and convenient to use;
-10000 times of plugging life, safe and reliable;
-Superior protection performance, the protection grade of gun head and control box is IP67; Plug protection grade IP55 (under working condition);
-High strength thermoplastic shell, flame retardant, weather resistant and impact resistant;
-The product has passed CQC certification;
