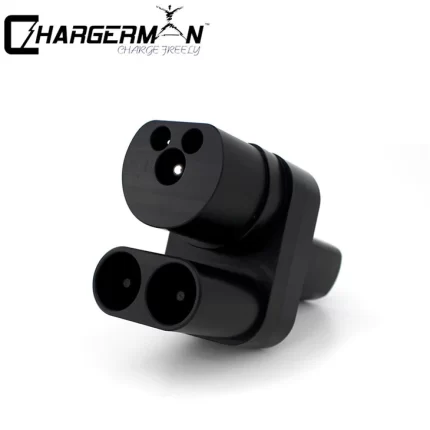

German Type Power Adapter
Mode 1 is plugged into a domestic AC outlet, but it is usually not allowed in most areas, because mode 1 has no special safety electronic equipment. Mode 2 also plugs into a standard household AC outlet and includes these safety features in its ICCB. Mode 3 plug in wall box or charging station for AC charging. It does not include an ICCB. In Europe, consumers often need to bring their own type 3 cable to use their own public AC charging station. Mode 4 is reserved for high-speed DC charging in the charging station
Introduction to charging gun of new energy electric vehicle: Principle
The so-called household AC slow charging is to use a 5-10kw power level charger to convert it into DC to charge the battery in the vehicle on the basis of the existing residential power supply system (using single-phase 220V or three-phase 380V). Here, the key points are as follows: 1. Try to reduce the impact on the power grid with the help of low power consumption, and also reduce the user cost through the preferential peak valley electricity price: this can be solved through timers; 2. the power should not be too high and the charging speed should not be too fast. 5-8 hours is enough. The bearing capacity of the cell line needs to be considered.
● comply with the latest gb/t20234.3-2015 standard
● good ergonomic design, beautiful appearance and comfortable grip;
● self locking structure and anti loosening function during charging, which can prevent accidental disconnection between the charging plug and socket and avoid the harm of instantaneous power failure
● excellent protection grade, overall protection grade IP65
● the jack adopts multi contact holding type inner crown spring structure, with extremely low contact resistance, which greatly reduces the generation of instantaneous arc
Mechanical performance mechanical life: no load plugging: ≥ 10000 times plugging force unlocked state: insertion and separation force: ≤ 140n locking state: separation force ≥ 200N
Electrical performance rated working current: 80a/125a/250a rated working voltage: 750v/1000v (DC)
Ambient performance temperature range: -50? C～+60? C relative humidity: 95% (at 40 ° C)
Degree of protection: IP54; Plug in state: IP65
Main material shell / insert: thermoplastic; Flame retardant grade: V0 contact: copper alloy; Surface treatment: silver plating

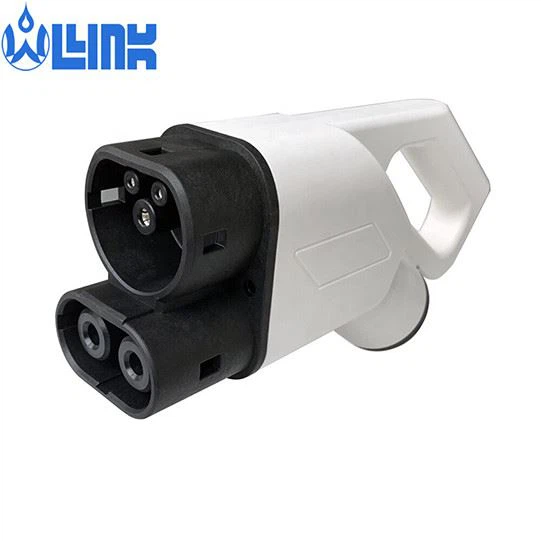

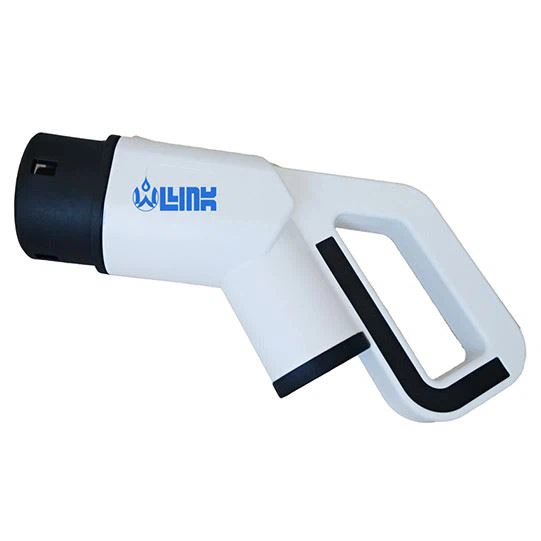

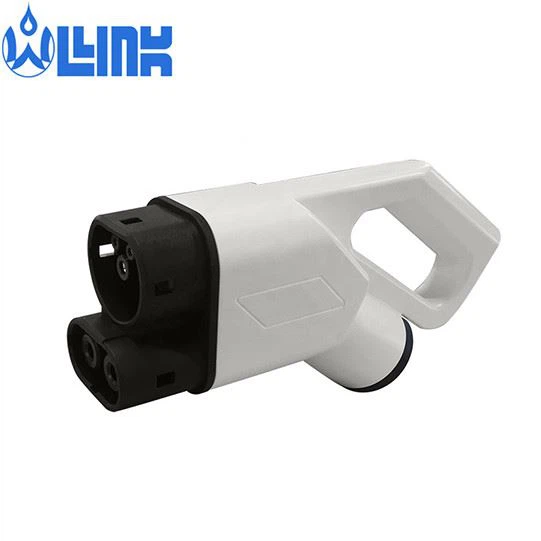

Model of imported DC charging gun head:
Charging mode connection mode power supply mode voltage and current wiring description cable length model
4 C DC 750v/1000v 80A cable plug at one end, no wiring at one end, 5m wdcc-dc-p80-5m
4 C DC 750v/1000v 125A cable plug at one end, no wiring at one end, 5m wdcc-dc-p125-5m
4 C DC 750v/1000v 250A cable plug at one end, no wiring at one end, 5m wdcc-dc-p250-5m
