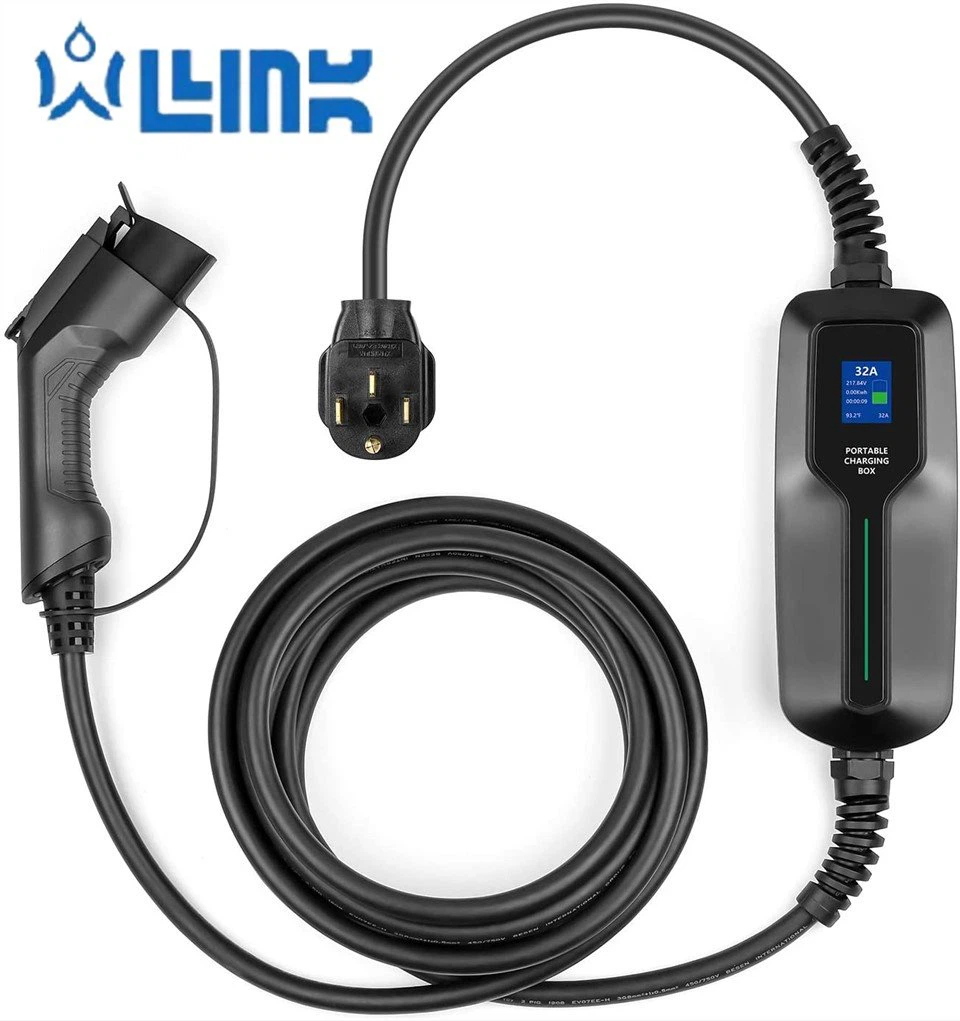

EV Charging Cable Type 1

Features

1. This EV Charging Cable Type 1 meets the requirements and requirements of IEC62196

2. The EV charging cable Type 1 hand-held design conforms to ergonomic principles and is easy to plug and unplug.

3. The EV charger pin head is designed with safety insulation to prevent direct contact with the power supply by hand.

4. It has excellent protection performance, and the protection level reaches IP55 (working state).

5. The V-shaped charging cable is made of PVC copper material, which is flame retardant, environmentally friendly, wear-resistant, weather-resistant, impact-resistant, highly oil-resistant, and UV-resistant.

6. The charger shell is injection molded.

Parameters

1. Rated working current: 16A/32A (single-phase/three-phase)

2. Working voltage: 380-450V

3. Insulation resistance: >1000MΩ(DC500V)

4. Terminal temperature rise: <50K

5. Withstand voltage: 2000V

6. Contact impedance: 0.5mΩ Max

7. Working environment temperature: -30℃～+50℃

Performance

1. Mechanical life: no-load plugging and unplugging>10000 times

2. Impact resistance: The EV Charging Cable Type 1 can withstand a 1 meter drop and 2 tons of vehicle rolling pressure

Material application

1. Shell material: thermoplastic, flame retardant grade is UL94V-0

2. Pin: copper alloy, silver plated on the surface + thermoplastic on top
