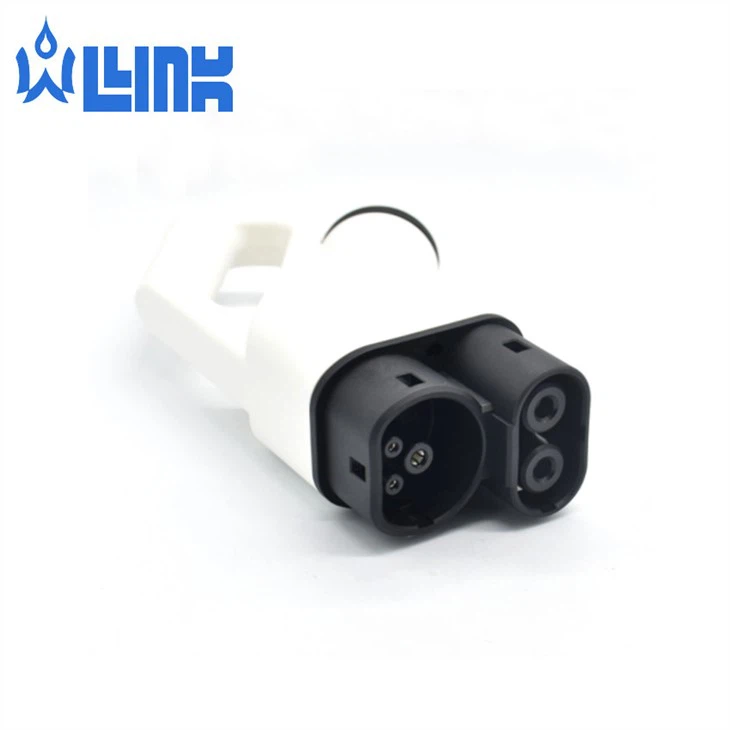

Ccs Combo Plug

The AC/DCccs combo plug can be located on the outside of the vehicle or embedded in the interior of the vehicle. The charger is connected to the battery management system. This system ensures that the battery cells are charged correctly until the high voltage (HV) requirements are met. The HV battery is essential for driving the traction motor during operation. It also supplies the other electronic modules of the vehicle with 12 V via a converter. Depending on the charging mode (slow, medium or fast) and technology (wired or wireless)

Send Inquiry

Chat Now

Category: EV Charger Cable

Description

As we all know, CCS combo plug battery is the core of new energy vehicles and the power source of the whole vehicle. It can be simply understood that the working mode of the new energy vehicle battery is the same as that of the mobile phone battery. When the mobile phone is found to be dead, it starts to be charged. When it is fully charged and continues to be used, the power will slowly decline with the use time and mode. When the power drops to a certain level, it needs to continue to be charged.

Basic Info.
Model NO.:M3W132EN
Accessories：Load Balancing
Output Current3277A
Input Voltage：1-Phase, 220V±15%
Input Freque11ncy Range:50/60Hz
Charging Standards:0IE1C 62196-2 (Type 2)
Ocpp Protocol(Optional):Ocpp 1.6j
External Communication：LAN(Rj-45) and Wi-Fi
Protection Ratings:IP54
Charging Control：Plug and Play or RFID Card
Display Screen:4.3-Inch LCD Screen
Color：Customized Color
RCD:Type B
Transport Package：Cartons/PCS 498*342*268mm
Specification:410*260*164; <10kg
Trademark：OLINK
Origin:China
HS Code：8504409999
Production Capacity：10000/Month

In general, it doesn’t matter if the CCS combo plug is not pulled out in time after it is fully charged. Because the BMS at the vehicle end will control the charging current, when the vehicle is fully charged, the BMS will send a “stop charging” signal. At this time, the charging pile is actually closed. It doesn’t matter if the gun is not pulled out in time. If the charging gun continues to be inserted at the vehicle end, there will be no damage to the battery or the vehicle. However, in order to save resources and give charging resources to more people in need, Xingxing charging suggests that car owners: pull out their guns in time after charging in public stations to reduce the occupation of full power.
