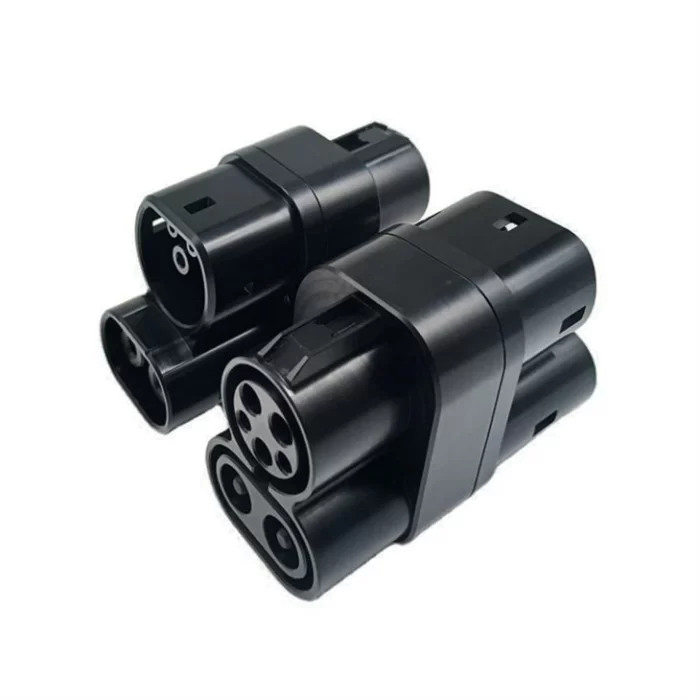

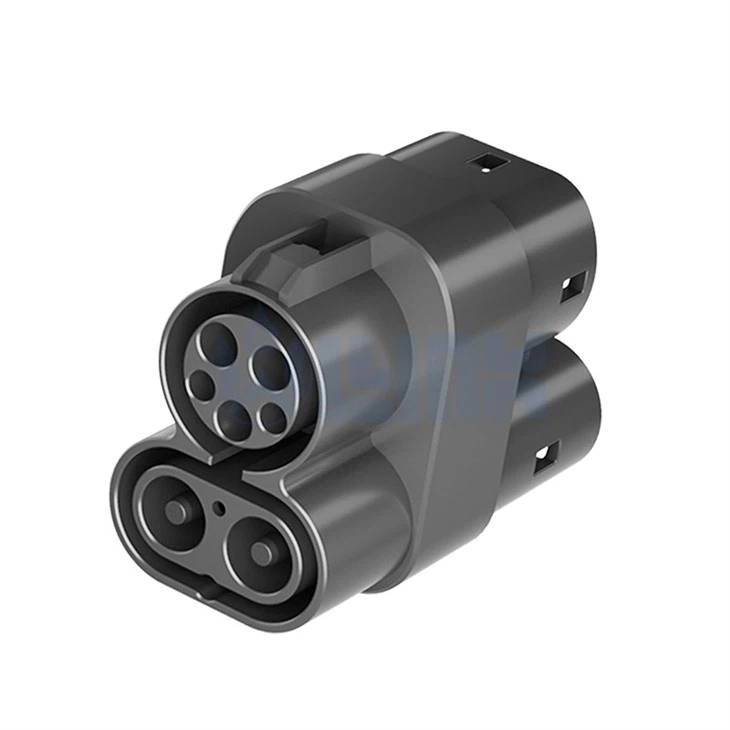

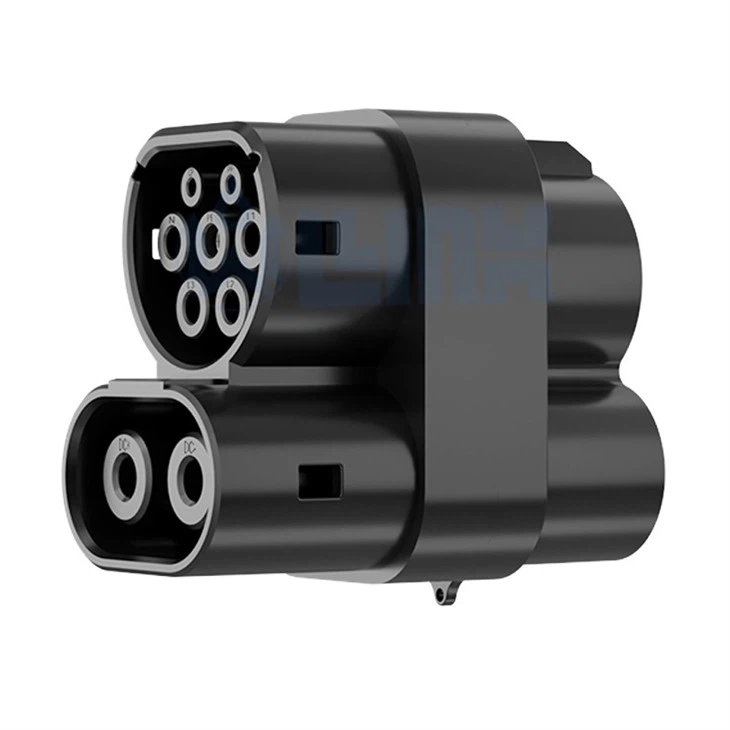

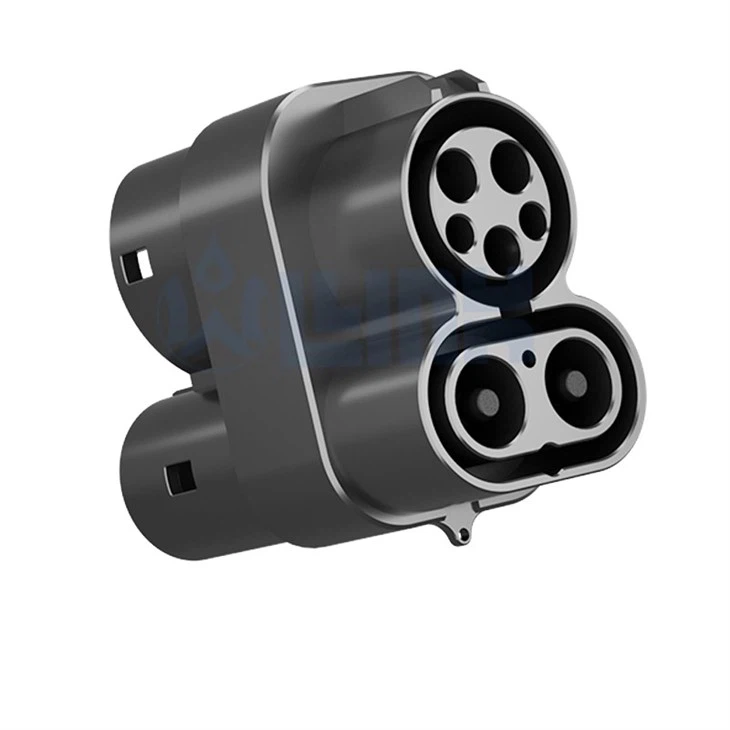

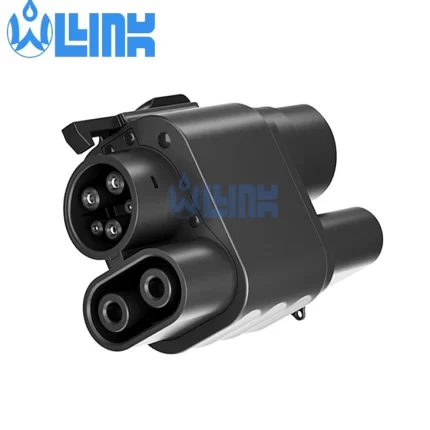

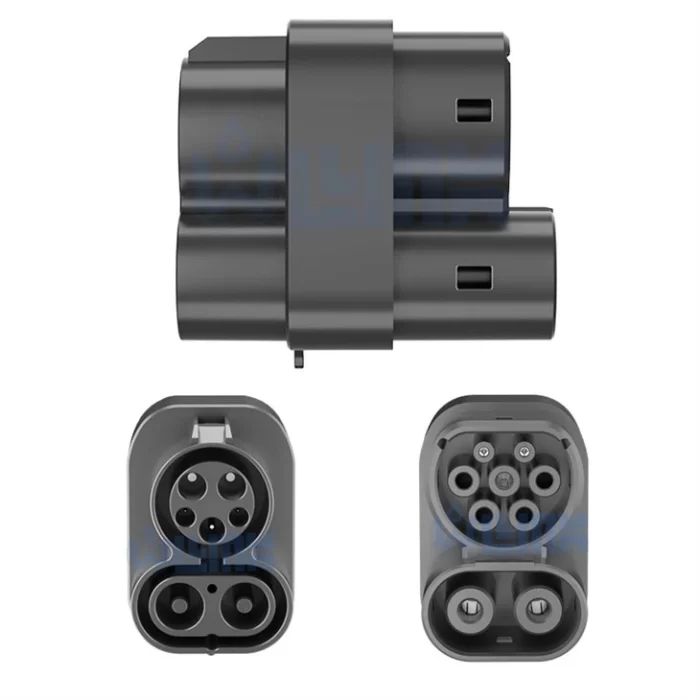

CCS 1 To CCS 2 Connector Adapter Charger

Short Description:

Item: CCS1 to CCS 2 EV Adapter
If your electric vehicle has the European standard CCS Combo 2 inlet for DC fast charging, and you wish to use DC fast chargers in the US, Korea, or Taiwan, then this adapter is for you! This durable adapter lets your CCS Combo 2 vehicle charge at full speed at all CCS Combo 1 quick charger stations. Rated for up to 150 amps and 600 volts DC

Charging plug	COMBO1 :Meet 62196-3 IEC2014 SHEET 3-lllB standard COMBO 2:meet 62196-3 IEC 2011 SHEET 3-lm standard
Features	Combo 1:Housing massive structure promote protection performance Combo 2:Safety pins insulated head design to prevent accidental direct contact with staff
Mechanical life	No-load plug in/pull out>10000 times
Impat of external force	can afford 1m drop and 2t vehicle run over pressure
Operating temperature	-30℃~+50℃
Case Material	Thermoplastic,flame retardant grade UL94V-O
Contact bush	Copper alloy.silver plating
Product entire insertion and extration force	<100N
IP Protection	IP65
Rated current	150 A
Insulation resistance	>2000MΩ（DC1000V）
Terminal temperature rise	<50K
Withstand Voltage	3200V
Operation voltage	1000VDC

Although DC fast charging for electric vehicles is usually unnecessary, as the optimal charging rate depends on the usage situation the driver is currently facing, it is practical to charge the DC fast charging station almost completely in one hour. It is different from the charging range with a charging rate of 50 kilowatts per hour or more (the charging rate per hour is 20 kilowatts or more).
